              Specifications

              PSE

              Con-Pak Condensing Unit Protection Systems

              The CON-PAK line of condensing unit enclosures provides outstanding equipment protection in all types of
              weather.


              Constructed of G90U Galvanized material for long lasting durability, the PSE Series is designed for quick assembly and easy access for repair work.


              CON-PAK enclosures are also customizable and can be produced in Stainless Steel or Aluminum.  Powder coating is a popular option for installations that require the enclosure to blend into its surroundings.


              Foam baffle is provided to prevent the recycling of air within the cabinet.


              Quality, reliable protection for most condensing units-1/4-10 horsepower.

              See the sizing chart below to determine the right CON-PAK enclosure for your needs.


              CON-PAK
              Model

              Dimensions (Inches)

              Anchor Bolt Hole
              Centers (IN)

              Hood
              Projection

              Approx
              Shipping Weight

               LWHL2W2L3LBS
              131D20 (19)13 (13)17 (13)15.2515.25N/A24*
              181D27 (26)20 (20)20 (16)22.5021.25N/A41*
              191D29.50 (28.50)37 (37)27.50 (22.50)29.2533.00N/A83*
              201D27 (26)24.50 (24.50)22 (18)22.5025.75N/A49*
              231D35.50 (34.50)24 (24)25 (21)31.0025.25N/A69*
              241D29.50 (28.50)37 (37)27.50 (22.50)29.2533.00N/A83*
              311D33.50 (32.50)48.50 (48.50)35.50 (30.50)33.2544.5015.50121
              331D46.50 (45.50)38 (38)38 (33)46.5036.5016.50141
              401D33.50 (32.50)48.50 (48.50)45 (40)33.2544.5020.50135
              411D42.50 (41.50)74 (74)45.50 (40.50)42.2570.0021.50274


               ( ) Indicates Interior Dimensions

                * Indicated Small Parcel shipping available


              131D-231D Specs Diagram
              131D-231D Specs Diagram
              191D & 241D Specs Diagram
              191D & 241D Specs Diagram
              311D-411D Specs Diagram
              311D-411D Specs Diagram
              131D-231D Specs Diagram
              131D-231D Specs Diagram
              191D & 241D Specs Diagram
              191D & 241D Specs Diagram
              311D-411D Specs Diagram
              311D-411D Specs Diagram



              Specialty Enclosures





              Multiple Condenser Cabinet


              External link opens in new tab or windowContact Us for Pricing

              ECO

              Con-Pak Condensing Unit Protection Systems

              The CON-PAK line of condensing unit enclosures provides outstanding equipment protection in all types of weather.


              The ECO Series economy enclosure sets up easily in minutes.  All necessary fasteners are provided as well as clear, easy to follow instructions.


              See the sizing chart below to determine the right CON-PAK enclosure for your needs.

              CON-PAK
              Model
              Dimensions
              Anchor Bolt Hole
              Centers (IN)
              Approx
              Shipping
              Weight
               LWHL2W2LBS
              180A26 (26)20 (20)20 (16)22.5021.5037*
              190A28.50 (28.50)34 (34)22 (18)24.0035.2567
              200A26 (26)24.50 (24.50)22 (18)22.5025.7543*
              230A34.50 (34.50)24 (24)25 (21)31.0025.2564
              240A28.50 (28.50)37 (37)26.50 (22.50)24.7538.0087


               ( ) Indicates Interior Dimensions
              * Denotes Small Parcel Shipping Available




              PCU

              The CON-PAK line of condensing unit enclosures provides outstanding equipment protection in all types of weather.


              The PCU Series Side Mount Enclosure is designed specifically for walk-in coolers and freezers with wall mounted condensing units and is constructed of G90U Galvanized material for long lasting durability.  Refer to the sizing chart below to determine the appropriate enclosure to fit your needs.


              CON-PAK
               Model
              LWHX Y
              PCU-2000-18
              57.0023.2519.5048.0030.25
              PCU-2000-2061.5027.7521.5066.0030.25
              PCU-2000-2466.5032.7526.0084.0040.25




              Side Mount Condensing Unit Enclosure
              PCU Series View #1
              Side Mount Condensing Unit Enclosure
              PCU Series View #2
              Side Mount Condensing Unit Enclosure
              Side Mount Condensing Unit Enclosure
              Side Mount Condensing Unit Enclosure
              PCU Series View #1
              Side Mount Condensing Unit Enclosure
              PCU Series View #2




              MAN

              Con-Pak Condensing Unit Protection Systems


              The CON-PAK line of condensing unit enclosures provides outstanding equipment protection in all types of weather.


              Constructed of G90U Embossed Galvanized material for long lasting durability, the MAN Series enclosure is designed to cover condensing units with preexisting bases.


              CON-PAK
              Model
              Dimensions (Inches)
              Approx
              Shipping
              Weight
               LWHLBS
              1-A3B32538-3/815-1/227*
              1-ABC31-5/829-9/1618-5/842*
              2-DE31-5/840-9/1622-11/1650*
              3-FGH31-11/1648-13/1624-11/1665
              4-J35-5/848-13/1624-5/867
              5-K35-5/860-5/828-5/879
              6-L35-5/860-5/832-5/883
              7-M35-3/860-5/824-11/1675


                * Indicates Small Parcel shipping available


              SC


              The SC Series Theft Deterrent Cage provids the needed security to  dissuade would-be copper thieves and vandals from attacking equipment.


              Durable materials and finishing provide long-lasting protection. Stock units are designed to fit CON-PAK condensing unit enclosures.  Additional models are available for other equipment protection needs such as A/C units, Rooftop systems and Mini-split systems.


              Hinged access allows service personnel comfortable access to  equipment while restricting unauthorized access.


              Multiple locking systems available.  Contact External link opens in new tab or windowRDM Products for details.



              Standard Models designed to fit our Con-Pak line of enclosures



              SC ModelLengthWidthHeight

              Approx

              Shipping

              Weight

              SC-1820304030115#
              SC-23483030148#
              SC-24424834180#
              SC-31465642276#
              SC-33655044315#
              SC-40526052327#
              SC-41428652426#



              Models available designed for Mini-Split systems, A/C units and Rooftop systems

              Diagrams below are for illustration purposes only and are not representative of all models.




              SC-484145
              SC-484145 A/C Cage
              SC-462340
              SC-462340 Mini-Split Cage

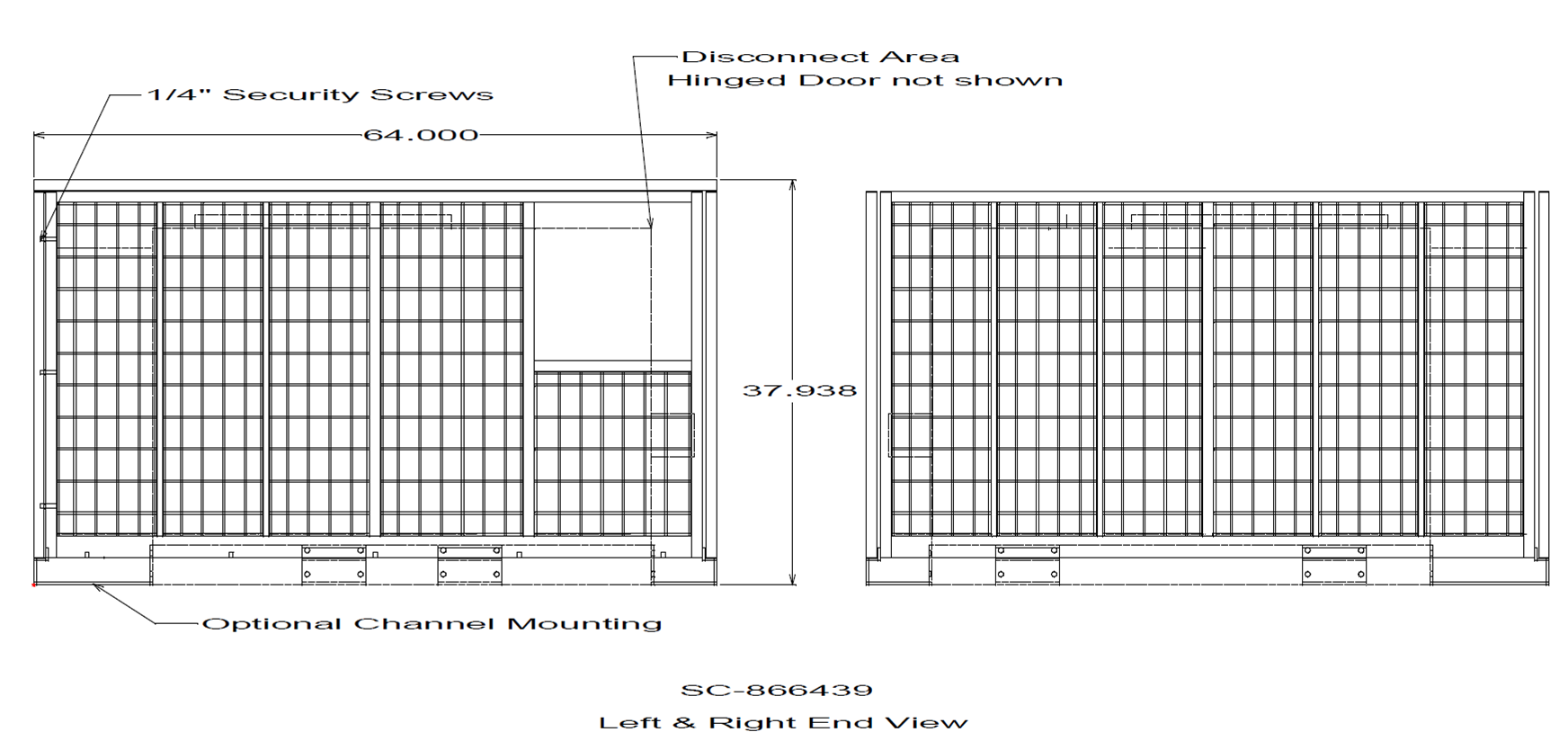

              SC-866439
              SC-866439 Rooftop Cage
              SC-484145
              SC-462340
              SC-866439
              SC-484145
              SC-484145 A/C Cage
              SC-462340
              SC-462340 Mini-Split Cage
              SC-866439
              SC-866439 Rooftop Cage
